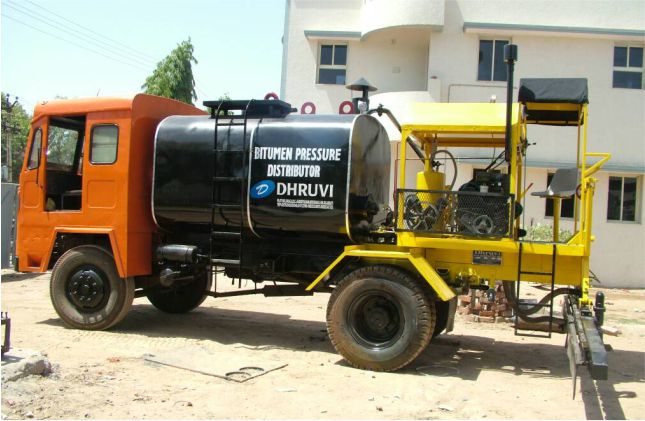

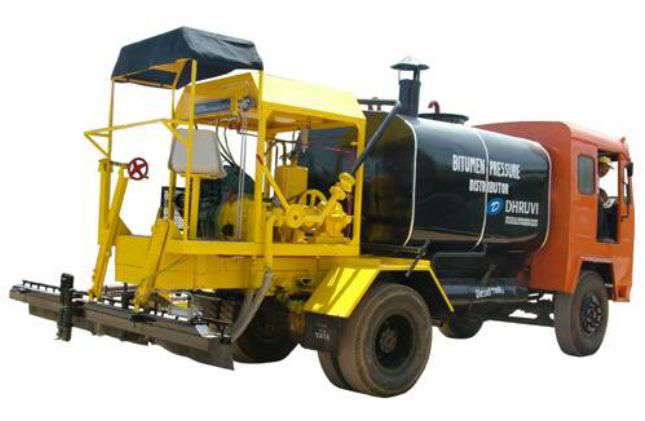

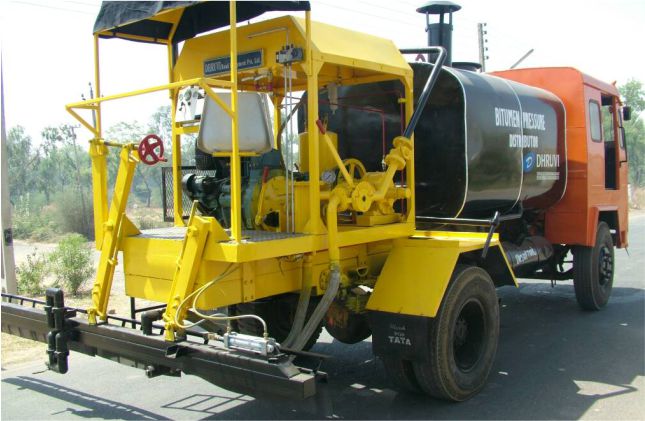

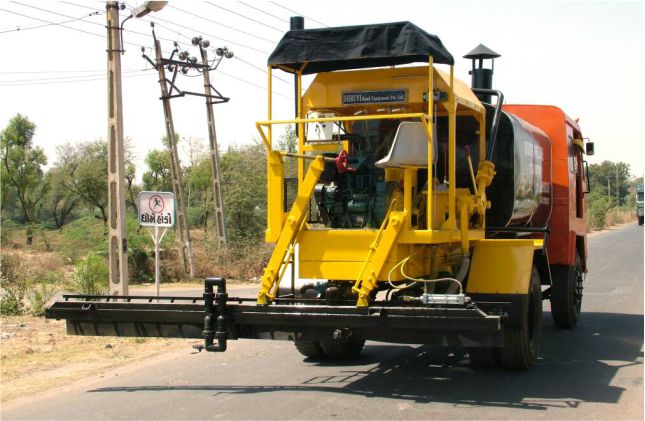

BITUMEN / EMULSION PRESSURE DISTRIBUTOR
With rich industry experience, passionate devotion and effort of our team of skilled professionals,
we Dhruvi Road equipment are engaged in manufacturing, exporting, and supplying of BITUMEN / EMULSION
PRESSURE DISTRIBUTOR in Mehsana, Gujarat, India. Our offered distributors are precisely manufactured by making use
of cutting edge technology. Our professional utilizes premium quality materials which is sourced from
the authentic and trusted vendor of the market in manufacturing of this product. Moreover, we are
offering these Bitumen Pressure Distributors to our most valued patrons at leading market rates.
Models available of BITUMEN / EMULSION PRESSURE DISTRIBUTOR
DPD 3 Ton: 3000 liters
DPD 4 TON: 4000 liters
DPD 6 TON: 6000 liters
DPD 7 TON: 7000 liters
BITUMEN PUMP :
2” x 2”, 350 lpm, positive displacement gear pump.
AIR COMPRESSOR :
Twin cylinder, 3 hp, 360 lpm capacity with working pressure of 9 kg/cm.
DRIVING UNIT :
Powered by a 18.5 KW ( 25 HP ) Air cooled diesel engine.
BITUMEN SPRAYING PRESSURER :
0 - 6 kg/cm, pressurized bitumen spraying.
TEMPERATURE INDICATORS :
• 0 - 300 C analog scale located on the tank.
• Digital temperature indicator on remote box.
SPRAY BAR :
• Standard width: 2.4 m.
• Adjustable Extension bar for spraying width up to 4.2 m.
• Nozzle Distance 225mm Nozzle c/c.
• Pneumatically Operated Spray bar Nozzles.
STANDARD FEATURES
- Designed to suit standard truck chassis.
- Suitable for Bitumen / Emulsion Spraying.
- Insulated tank with high efficiency heating system.
- Spraying width ranging from 2.4 to 4.2 m.
- Digital Indicator Box for temperature & speed.
- Unique pressure cleaning system.
- Air - cooled diesel engine.
- Positive displacement gear pump.
- Hands spray system.
- Totally factory tested arrives ready to launch.
| Tank Capacity |
DPD 3 Ton |
DPD 4 TON |
DPD 6 TON |
DPD 7 TON |
| Length – L |
2400 mm |
2400 mm |
3000 mm |
3300 mm |
| Width – W |
1800 mm |
1800 mm |
1860 mm |
1860 mm |
| Height H |
1500 mm |
1500 mm |
1810 mm |
1810 mm |
| Capacity
|
3000 liters
|
4000 liters
|
6000 liters
|
7000 liters
|
| Manhole
|
600 mm
|
600 mm
|
600 mm - 1 nos.
|
600 mm - 2 nos.
|
| Insulation
|
50 mm
|
50 mm
|
50 mm
|
50 mm
|
| Shape Rectangular
|
Oval Shape
|
Rectangular oval Shape
|
Rectangular oval Shape
|
Rectangular oval Shape
|
| Burner
|
Compressed air type
|
Compressed air type
|
Compressed air type
|
Compressed air type
|
| Burner Fuel Tank
|
60 liters
|
60 liters
|
60 liters
|
60 liters
|
| Engine Fuel Tank
|
30 liters
|
30 liters
|
30 liters
|
30 liters
|
| Recommended Chassis
|
3760 mm - Wheel - base
|
3760 mm - Wheel - base
|
4470 mm - Wheel - base
|
4470 mm - Wheel - base
|
| Clear Chassis Length - CL
|
4550 mm
|
4850 mm
|
5450 mm
|
5750 mm
|
